Home > Copper Nickel > Copper Nickel Washers
Request For Our Latest Prices on Copper Nickel Washers in Delhi, India!

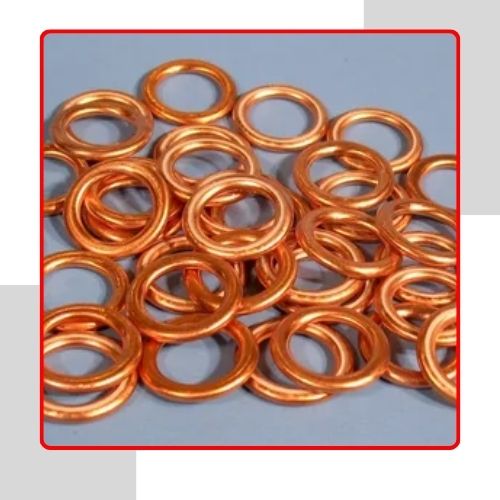

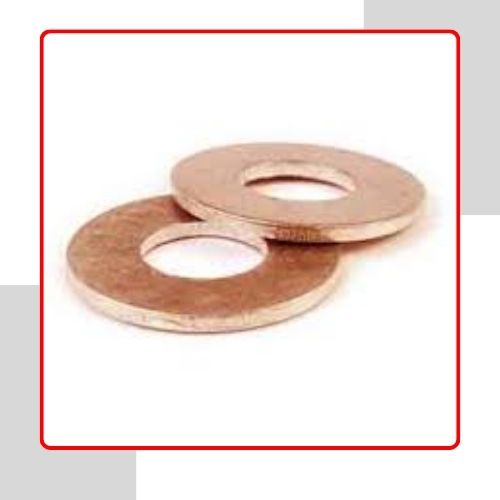

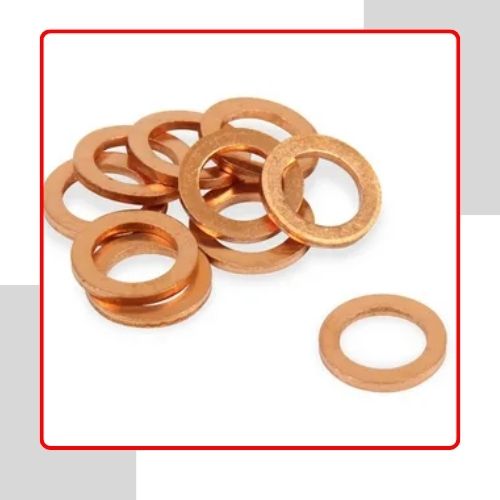

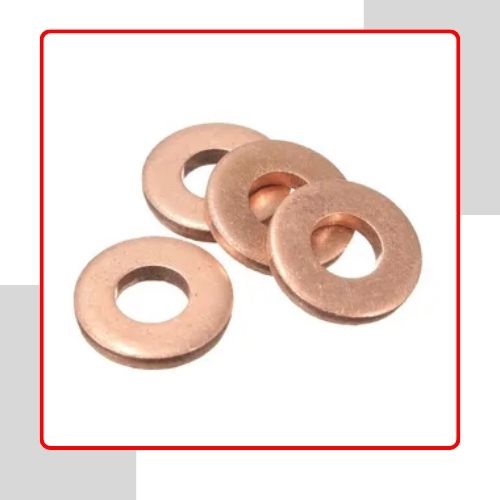

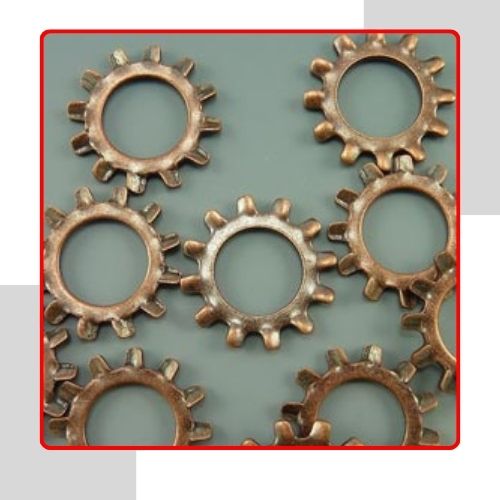

Punit Fasteners, based in Delhi, India, stands out as a top-notch manufacturer and supplier of high-quality Copper Nickel Washers, available in both Cu-Ni 90/10 and 70/30 alloy grades. Renowned for their precision engineering and exceptional corrosion resistance, these washers meet international standards like ASTM and ASME, making them perfect for tough marine and industrial settings. Punit Fasteners offers customized sizes and thicknesses to cater to various industry needs, serving sectors such as shipbuilding, desalination, oil & gas, power generation, and chemical processing. Their dedication to quality, prompt delivery, and technical support guarantees customer satisfaction.
Copper Nickel Washers come in two main alloy compositions: 90/10 (90% copper, 10% nickel) and 70/30 (70% copper, 30% nickel), with small amounts of iron and manganese added to enhance strength and corrosion resistance. The 70/30 alloy boasts greater mechanical strength, achieving tensile strength up to 500 MPa and yield strength around 200 MPa, while the 90/10 alloy offers tensile strength close to 400 MPa. Both types show excellent ductility (elongation ~30–45%), a modulus of elasticity around 140 GPa, and robust resistance to seawater, making them ideal for demanding structural and sealing applications.
| Copper Nickel | Ni | Pb | Cu | Fe | Mn | Zn |
| 9-11 max | 0.05 max | 88.6 min | 1.8 max | 1.0 max | 1 max |
| Density | Elongation | Yield Strength (0.2%Offset) | Melting Point | Tensile Strength |
| 8.1 g/cm3 | 30 % | Psi – 35,000, MPa – 241 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 |
| Specifications | ASTM / ASME SB 61 / 62 / 151 / 152 |
| Dimensions | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Size | 1/2” to 12″ |
| Standards | ASTM, ASME Washer, ANSI Washer, DIN Washer, EN Washer, BS Washer etc |
| Grade | Copper & Copper Nickel Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640 |
| Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN |
To satisfy our clients needs by providing high quality products at competitive price as per the schedule and to maintain long term relationship with our clients.
Copper Nickel Washers are crucial in settings where corrosion, high temperatures, and pressure are prevalent. These washers find extensive use in marine applications, including shipbuilding, offshore drilling, seawater cooling systems, and desalination plants, thanks to their outstanding resistance to saltwater corrosion. In power plants and the chemical industry, they serve to seal joints in heat exchangers, pumps, flanges, and valves. Their non-sparking and non-magnetic properties make them perfect for electrical and sensitive instrumentation systems. Plus, their durability and anti-galling features make them a great choice for high-velocity applications.
Copper Nickel washers at Punit Fasteners are packed carefully to retain the quality of the product that we provide. To ensure that each washer is not damaged or corroded, or contaminated in any way during transport, they are packed separately and covered with protective materials. We employ the use of hard-wearing cartons and ensure that we meet your packaging requirements as desired. Proper labeling and packing helps in easy identification and handling of products, which is a testimony to our promise of quality products in good condition.
Punit Fasteners is a leading manufacturer and supplier of high-quality fasteners in Delhi, India, with over 15 years of experience serving global industries.
